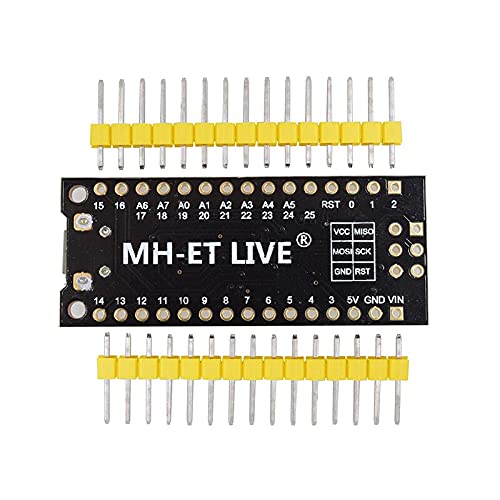

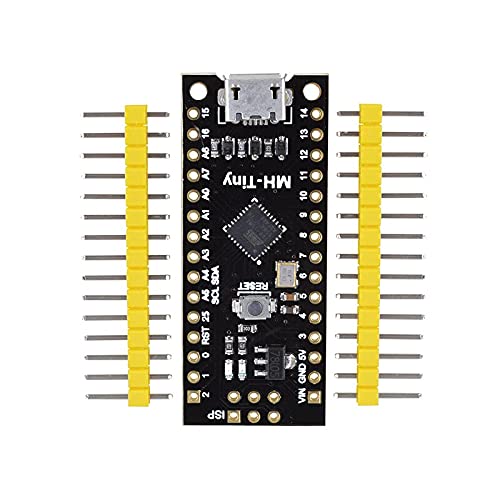

ATTINY88 Module - Arduino Nano Alternative, Cheap, Smaller & Less Powerfull
MH-Tiny ATTINY 88 development module NANO v3.0 micro USB Extended Digispark ATTINY85 Upgraded for Arduino SPI/IIC/Serial port
The MH-ET LIVE ATTiny88 is an Attiny88-based microcontroller development board similar to the Arduino Nano; it's a little cheaper due to the microcontroller being slightly less powerful than the ATmega328.
With the ability to use the Arduino IDE, the MH-ET LIVE ATTiny88 is a great alternative board to jump into electronics or perfect for when other boards are too big or unnecessarily too powerful.
Quick Spec
- Support for the Arduino IDE 1.0+ and upwards (OSX/Win/Linux)
- Power via USB or External Source: 5v or 7-35v (12v or less recommended, automatic selection)
- On-board 50mA 5V Regulator
- Built-in USB
- 26 I/O Pins (2 are used for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB)
- 8K Flash Memory (about 6K is available after boot-loader)
- I2C and SPI
- 26 PWM (26 pins with Software PWM, only two(D9,10) with hardware PWM)
- ADC on 8 pins
- Power LED and Test/Status LED
- Dimensions: 44.8 x 18.5 x 4.2mm
- Net Weight: 6g
Pinout:
Installation Instructions:
First, download the appropriate Arduino package at the Arduino. cc website: https://www.arduino.cc/en/Main/Software
If using Arduino 1.6.6 or higher and windows - you will need to download and install the drivers manually. Download, unzip and run “Install Drivers” (on 32bit systems) or “DPInst64” (on 64bit systems). The driver files are located here: https://github.com/MHEtLive/MHEtLiveArduino/releases/download/1.0.0/
2.0a4.rar
Install or Unzip the Arduino application.
Run the Arduino application.
In the Arduino application go to the “File” menu and select “Preferences”, In the box labeled “Additional Boards Manager URLs” enter:
https://raw.githubusercontent.com/MHEtLive/arduino-boards-index/master/p
ackage_mhetlive_index.json and click OK;
Go to the “Tools” menu and then the “Board” submenu - select “Boards Manager” and then from the Type drop-down select “Contributed”:
Select the “MH-ET LIVE Boards” package and click the “Install” button.
You'll see the download progress on the bottom bar of the “Boards Manager” window, when complete it will show “Installed” next to that item on the list.
WINDOWS USERS: When completing the install pop up a Driver Install Wizard window, please click “Next” on this Window to install the drivers for MH-ET LIVE
Boards (If you already have them installed, this installer will update them and install any that are missing).
With the installation complete, close the “Boards Manager” window and select the MH-ET LIVE Boards “MH-ET LIVE Tiny88(16.0Mhz)” from the Tools→Boards menu.
Choose the example that comes with the Arduino IDE: Select the development board as MH-ET LIVE Tiny88 in the toolbar, open the program in File >>Example >> Basic>>Blink, and change the port 13 in the program to 0. Port, compile, and download into the MH-ET LIVE Tiny88(16.0Mhz) according to the above method, it can be seen that the onboard LED light flashes according to the
frequency specified by the program. (note: When downloading the program, do not connect the module first, wait for the prompt to insert the module after compiling, then plug it in and wait for the automatic download to complete).
Resources:
Package Includes:
-
1 x ATTINY88 Module - Arduino Ready
-
1 x Header Set
