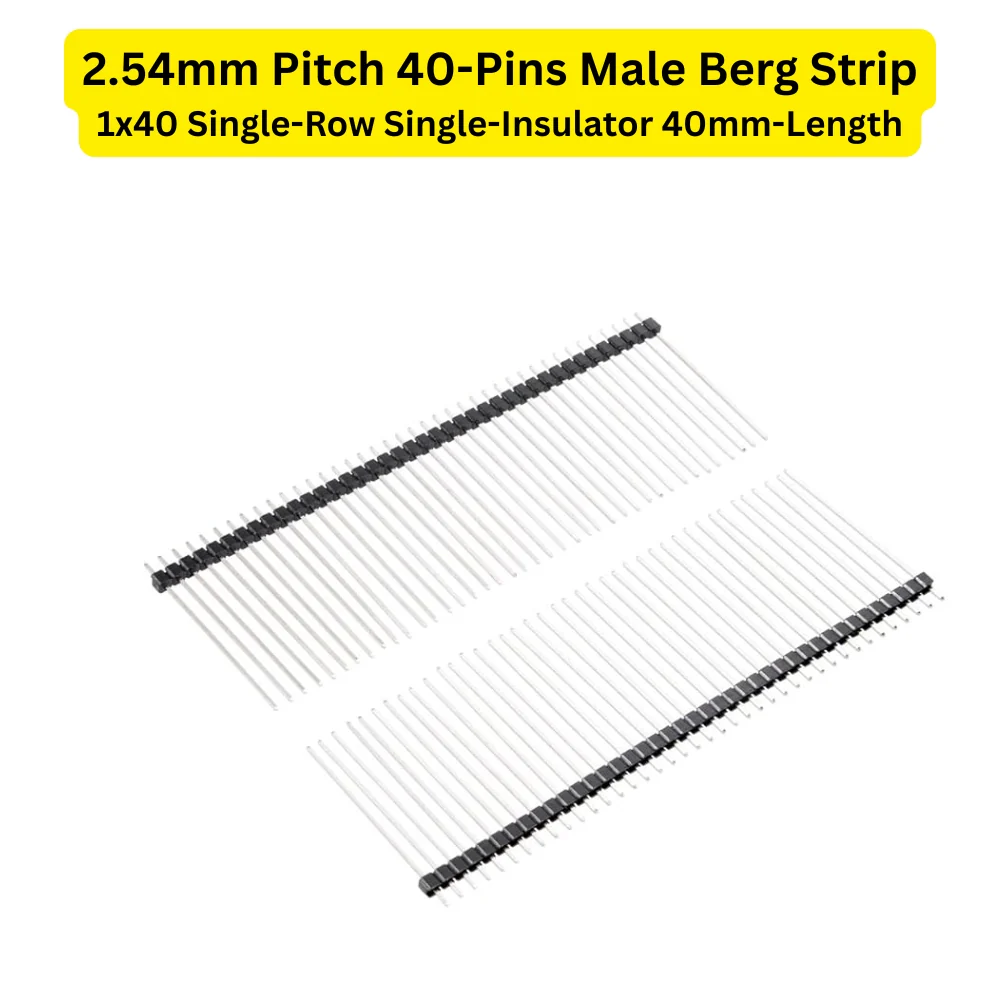

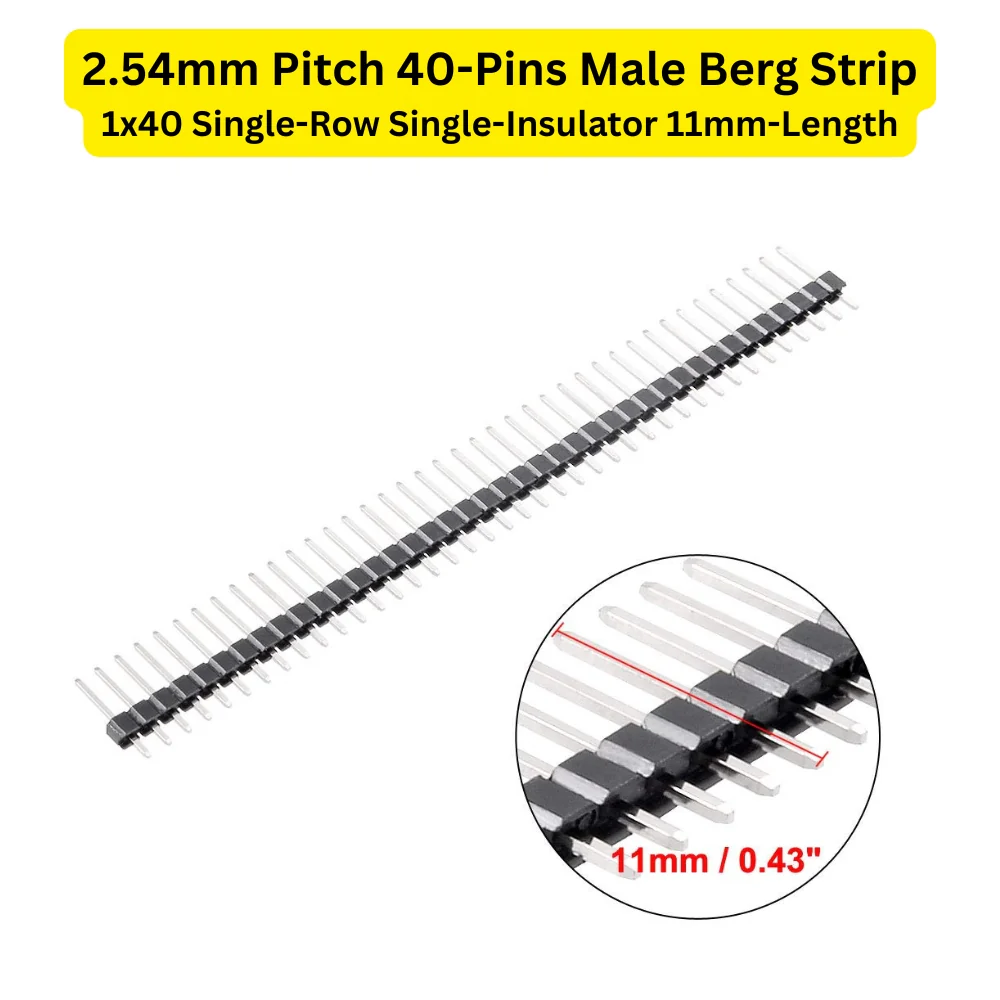

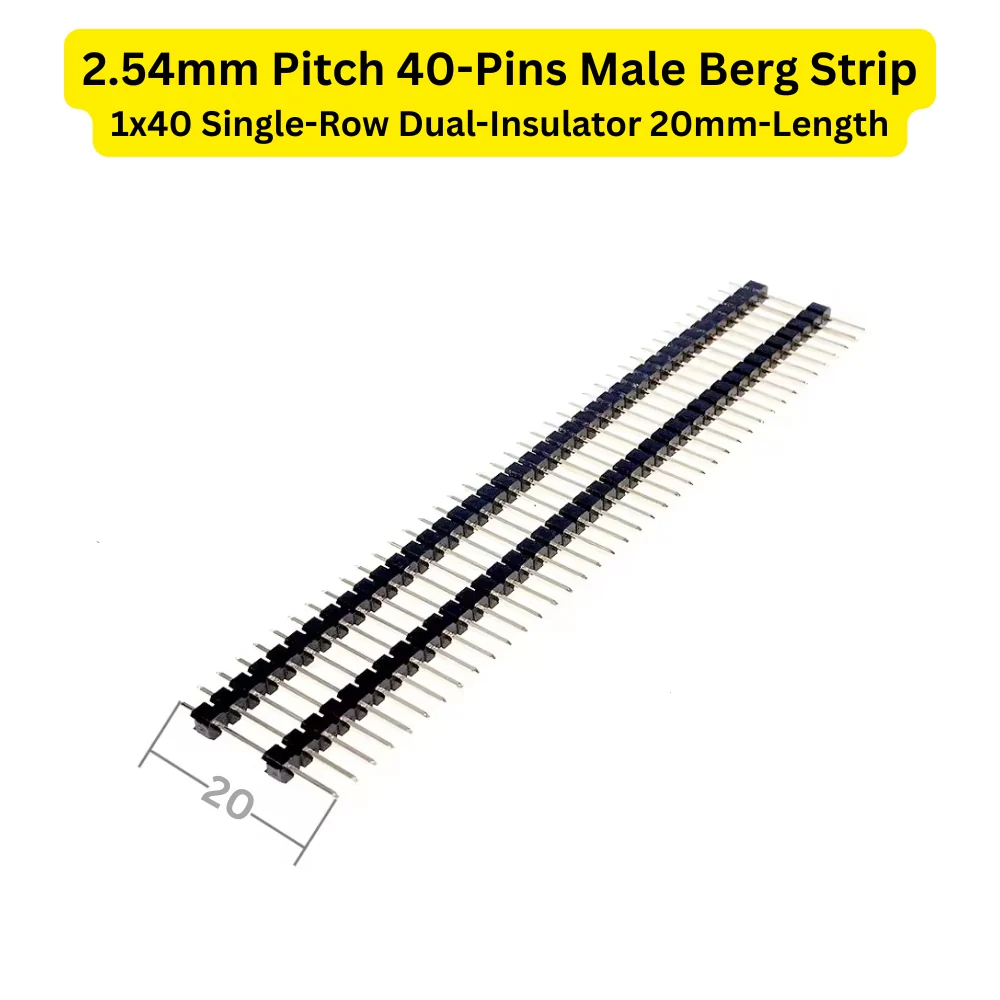

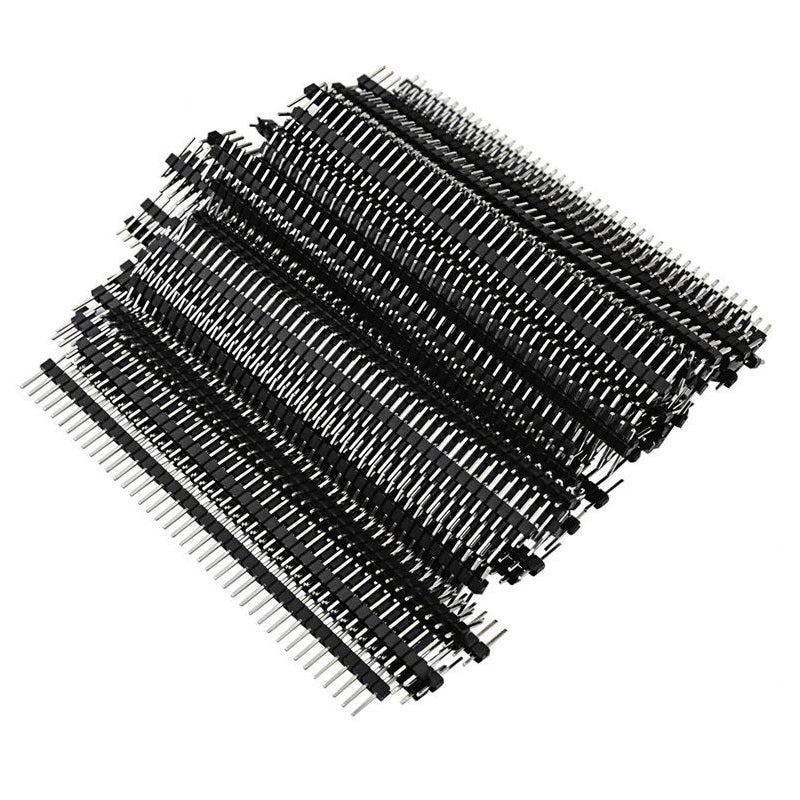

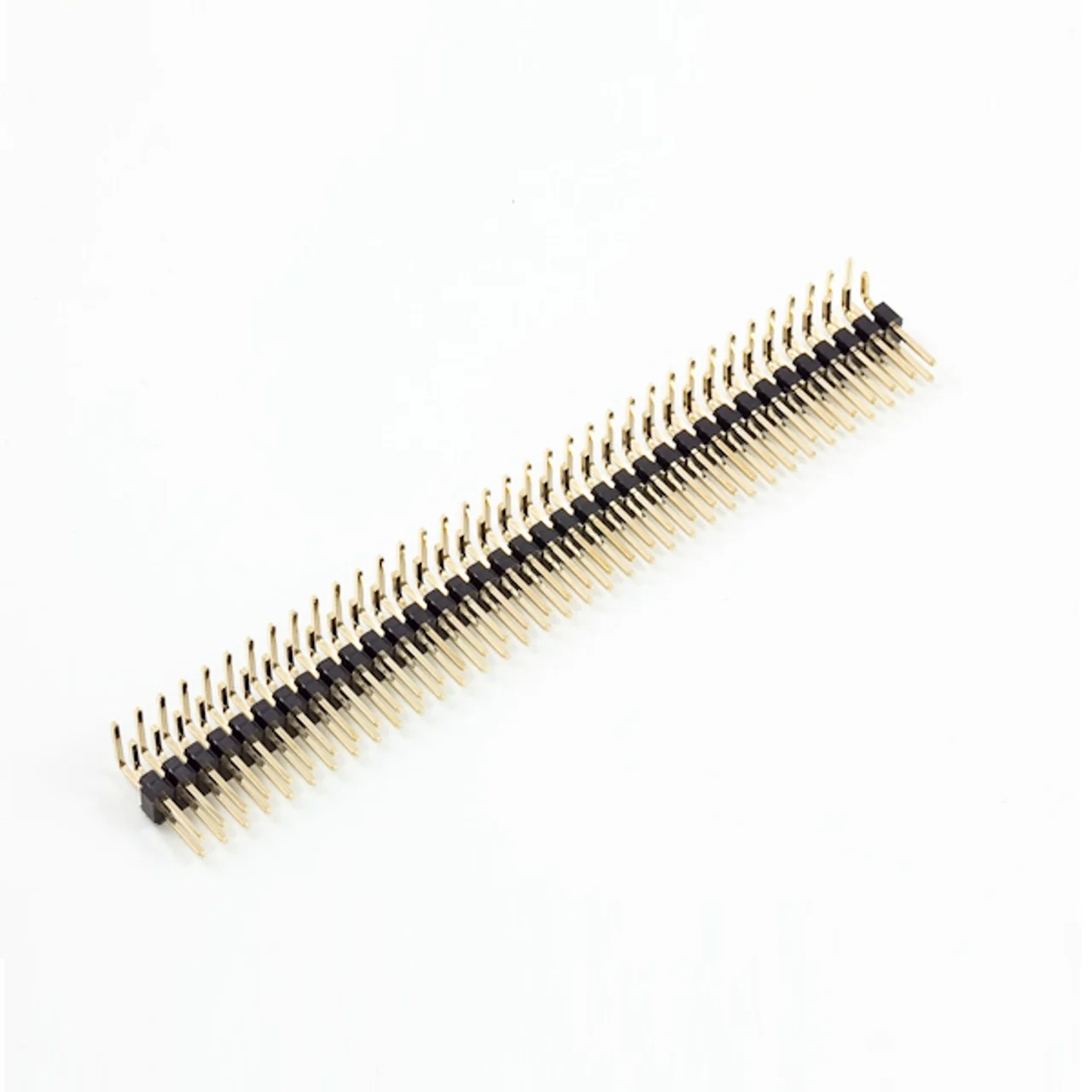

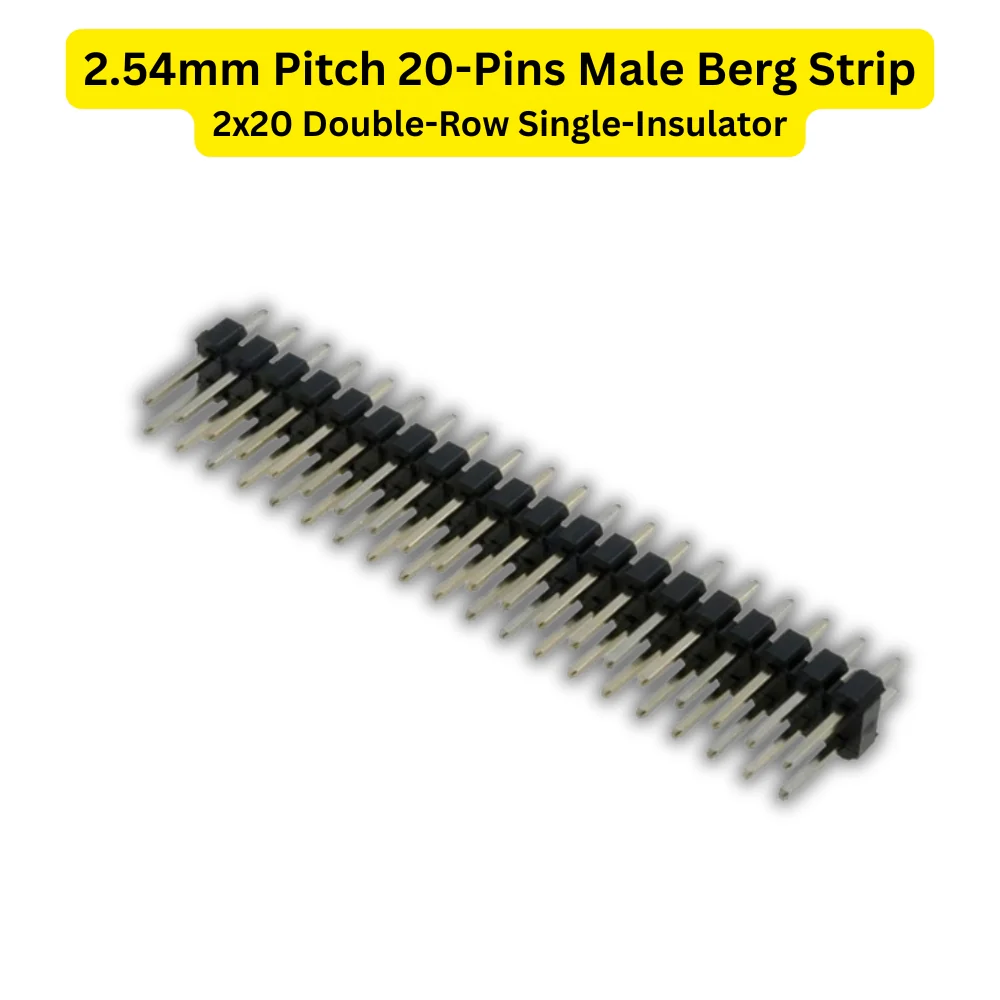

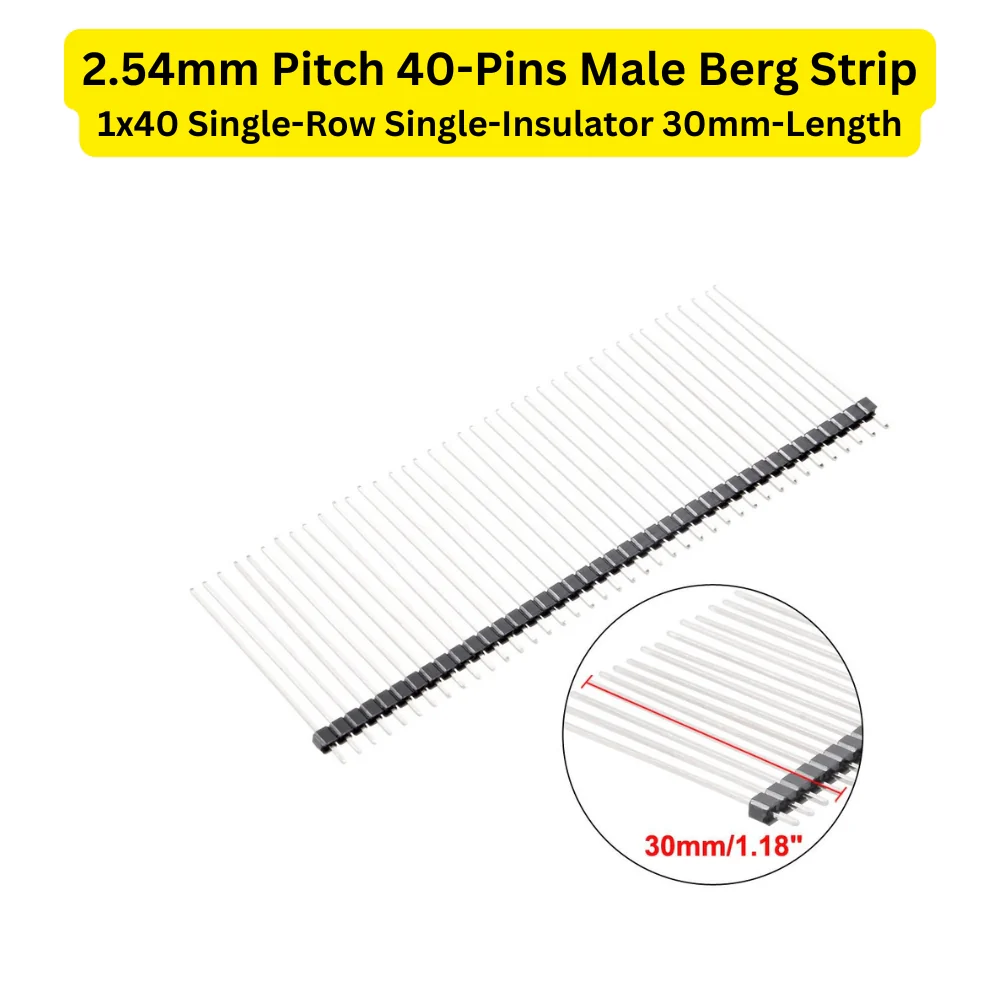

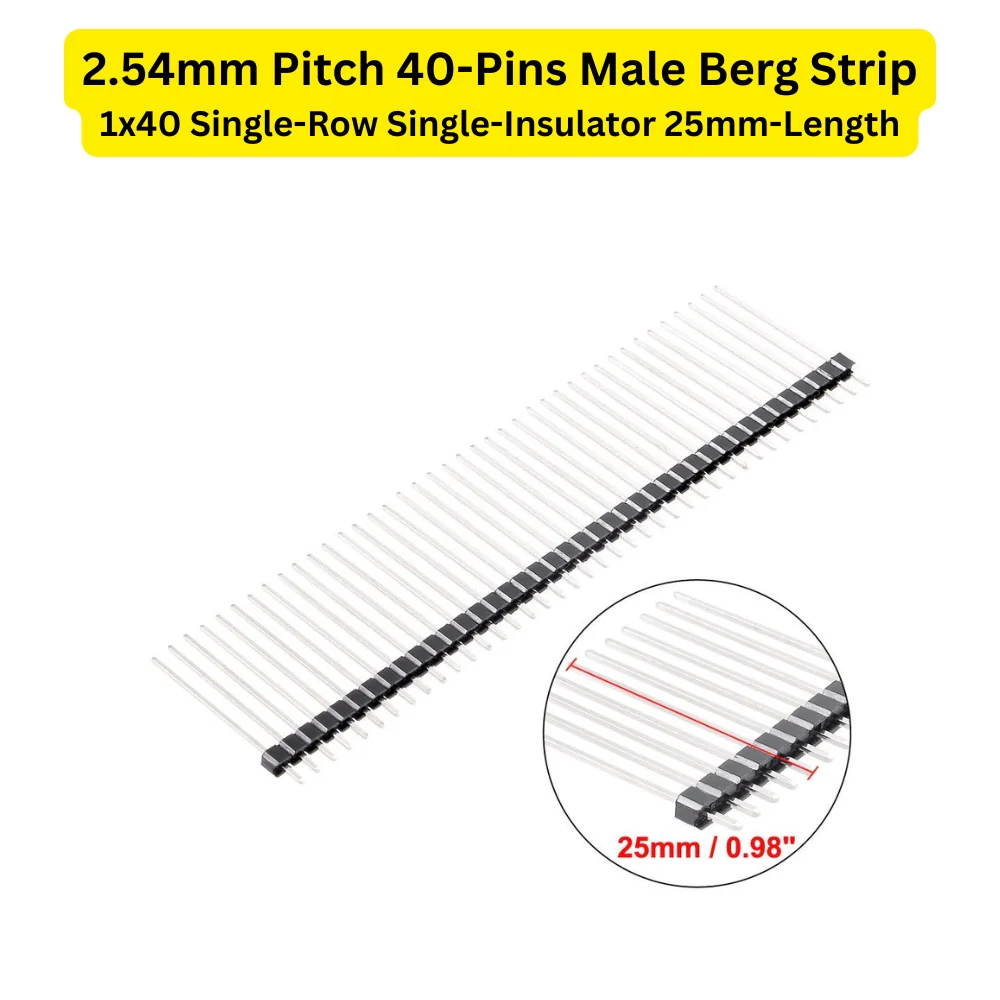

2.54mm 40-Pins Male Berg Strip Connector
2.54mm-Pitch 40 Pins Berg Strip Male Connector
The 2.54mm 40-Pin Male Berg Strip Connector is the most common type of PCB pin header used in electronics prototyping, microcontrollers, and embedded boards. With a 2.54mm pitch (0.1” spacing), it is fully compatible with breadboards, Arduino, Raspberry Pi, and other development boards.

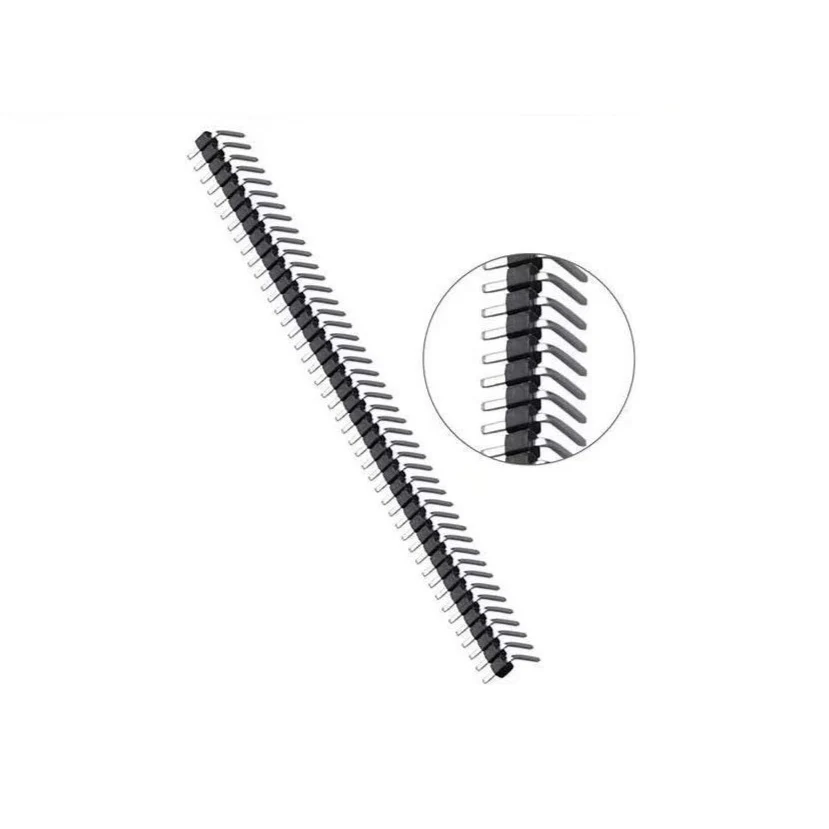

Each strip includes 40 pins, which can be cut into smaller pieces (such as 2-pin, 8-pin, 10-pin, 20-pin), making it highly flexible. Available in both straight (vertical) and right-angle (90° horizontal) versions, these connectors are widely used for board-to-board and wire-to-board connections.
Key Features
-

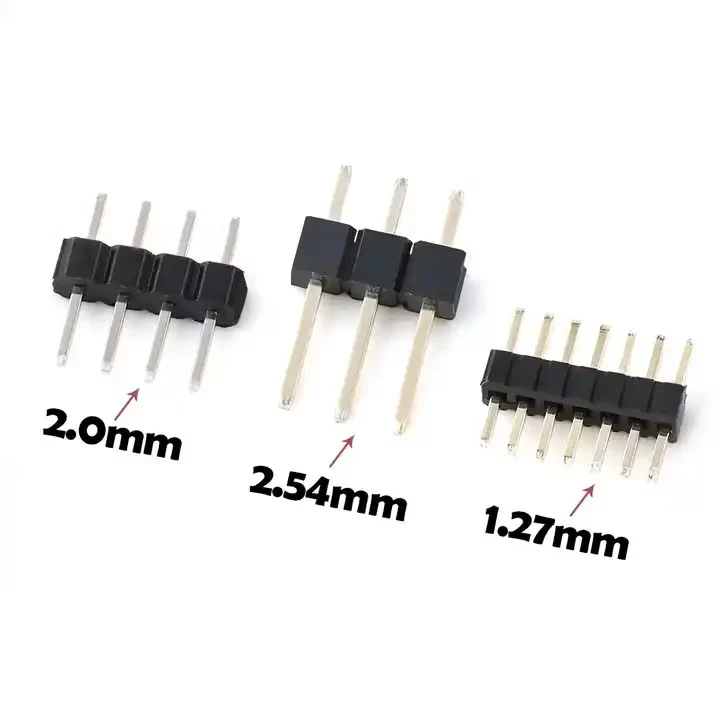

Standard 2.54mm pitch (0.1”) – compatible with breadboards & PCBs
-
40 pins per strip (cuttable to required size)
-
Available in straight (vertical) and right-angle (90° horizontal) types
-
Gold/tin plated pins for durability and conductivity (varies by supplier)
-
Easy soldering & reusability
-
Widely used in Arduino, Raspberry Pi, STM32, ESP32, robotics, and IoT projects
-
Cost-effective & essential for any electronics toolkit
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Male Berg Strip Connector |
| Number of Pins | 40 |

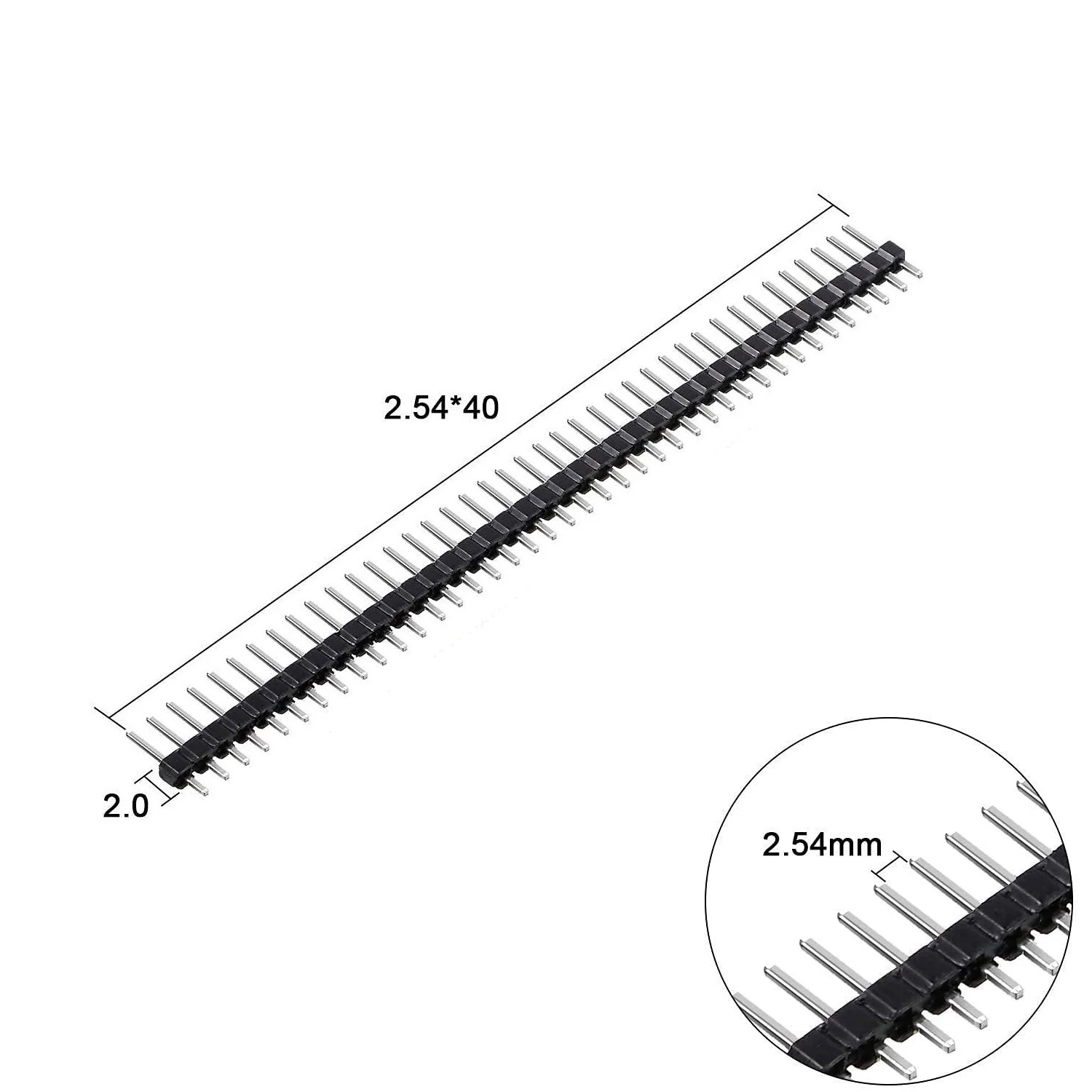

| Pitch | 2.54mm (0.1 inch) |
| Pin Orientation | Straight (Vertical) / Right-Angle (90°) |
| Pin Material | Copper Alloy (gold/tin plated) |
| Housing Material | Thermoplastic (UL 94V-0) |
| Mounting Type | Through-Hole PCB |
| Applications | Breadboards, Arduino, Raspberry Pi, Embedded Systems, DIY Prototyping |
