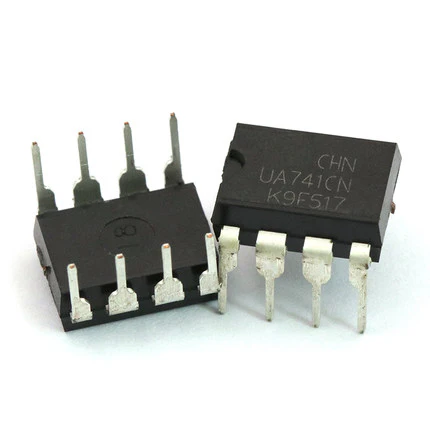

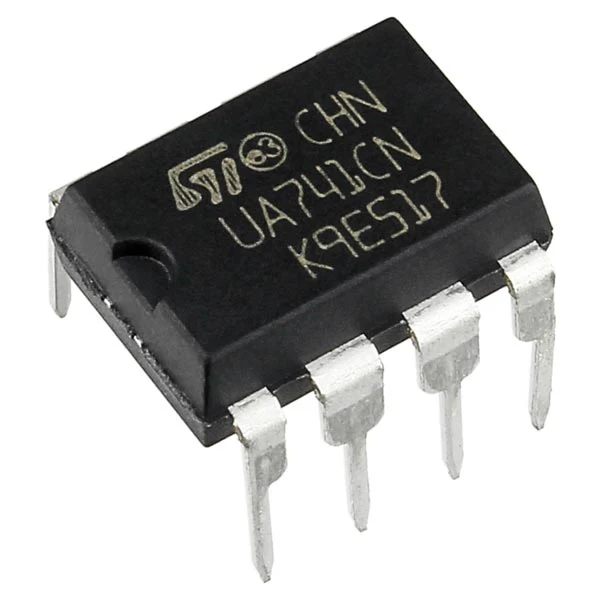

LM741 UA741 Operational Amplifiers Op-Amp IC Integrated Circuit
LM741 741 IC OP AMP Operational Amplifier IC
The 741 series are a general-purpose operational amplifier that features improved performance over industry standards like LM709. They are direct, Exceeded plug-in replacements for the 709C, LM201, MC1439, and 748 in most applications. The amplifiers offer many features which make their application nearly foolproof: overload protection on the input and output, no latch-up when the common-mode range is exceeded, as well as freedom from oscillations. The LM741C is identical to the LM741 and LM741A except that the LM741C has their performance ensured over a 0°C to +70°C temperature range, instead of −55°C to +125°C.
Features:-
• Overload Protection on the Input and Output amplifiers which feature improved performance over
• No Latch-Up When the Common-Mode Range is industry standards like the LM709.
Specification:-
| Supply Voltage: | ±18V |
| Differential Input Voltage | ±15V |
| CMRR | 90db |
| Differential voltage amplification | 200V/mv |
| Supply Current | 1.5mA |
