UV-Ultravoilet Ray Detection Sensor Module

Automatic UV (Ultra violet) Ray Detection Sensor Modules

UV-Ultraviolet Ray Detection Sensor Modules are designed to measure ultraviolet (UV) radiation intensity in the environment. These sensors are widely used in weather monitoring, industrial safety, UV index measurement, flame detection, and medical applications. They can detect different UV wavelength ranges, from UVA (320–400nm) to UVB (280–320nm) and UVC (100–280nm), depending on the module type.

---

Common Variants and Technical Specifications:

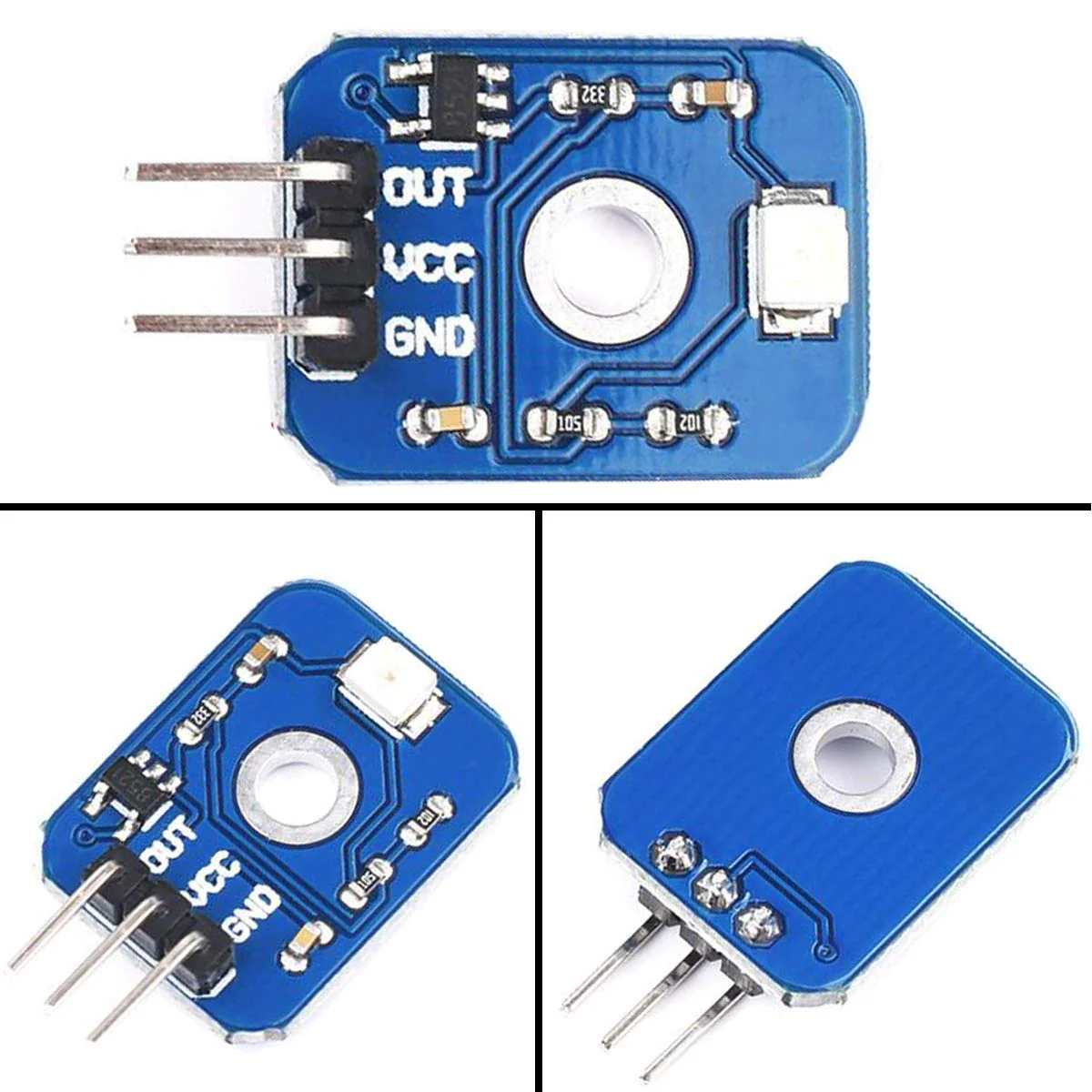

1. GUVA-S12SD UV Sensor Module

• UV Wavelength Range: 240nm – 370nm

• Operating Voltage: 3.3V – 5V DC

• Output Type: Analog voltage

• Response Time: <500ms

• Sensitivity: 0.13µA/mW/cm²

• Dimensions: ~20mm x 15mm

• Applications: UV index measurement, environmental monitoring, wearable UV detection

2. ML8511 UV Sensor Module

• UV Wavelength Range: 280nm – 390nm

• Operating Voltage: 3.3V – 5V DC

• Output Type: Analog voltage

• Sensitivity: ~0.15V/mW/cm²

• Response Time: <500ms

• Dimensions: ~21mm x 17mm

• Applications: Smart UV monitoring, wearable UV meters, IoT weather stations

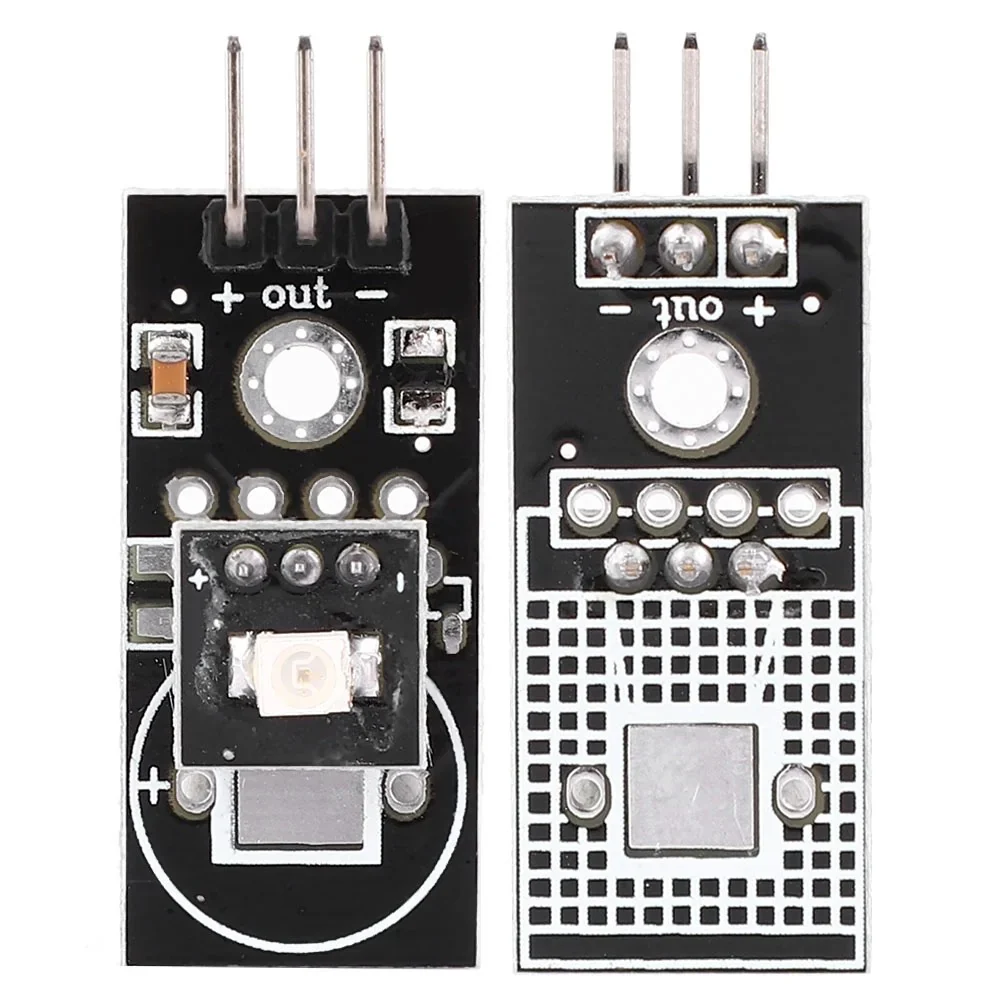

3. UVM-30A UV Sensor Module

• UV Wavelength Range: 200nm – 370nm

• Operating Voltage: 3.3V – 5V DC

• Output Type: Analog voltage

• Response Time: <500ms

• Sensitivity: 0.1µA/mW/cm²

• Dimensions: 25mm x 20mm

• Applications: Solar radiation detection, industrial UV exposure control

4. VEML6075 Digital UV Sensor Module

• UV Wavelength Range: UVA (320nm – 400nm), UVB (280nm – 320nm)

• Operating Voltage: 3.3V – 5V DC

• Output Type: I2C digital output

• Response Time: <100ms

• UV Index Calculation: Built-in calibration for UVA/UVB index

• Dimensions: 15mm x 12mm

• Applications: Wearable UV index sensors, UV skin exposure monitoring

5. SI1145 UV and Ambient Light Sensor Module

• UV Wavelength Range: ~280nm – 400nm (Calculated UV index)

• Operating Voltage: 3.3V – 5V DC

• Output Type: I2C digital output

• Additional Features: Measures visible and infrared light

• Response Time: <100ms

• Dimensions: 15mm x 12mm

• Applications: Weather stations, IoT UV monitoring, wearable health devices

---

Key Features:

• Accurate UV Radiation Measurement: Detects UVA, UVB, and some models estimate UVC exposure.

• Analog & Digital Output Options: Compatible with microcontrollers like Arduino, ESP32, and Raspberry Pi.

• Fast Response Time: Real-time UV intensity monitoring.

• Compact & Low Power: Ideal for battery-powered applications.

• Wide Application Range: Suitable for IoT, industrial, and health applications.

---

Applications:

• UV Index Monitoring for Weather Stations

• Industrial UV Exposure Control

• Smart Wearables & UV Health Monitoring

• Flame Detection Systems

• Solar Radiation Measurement
