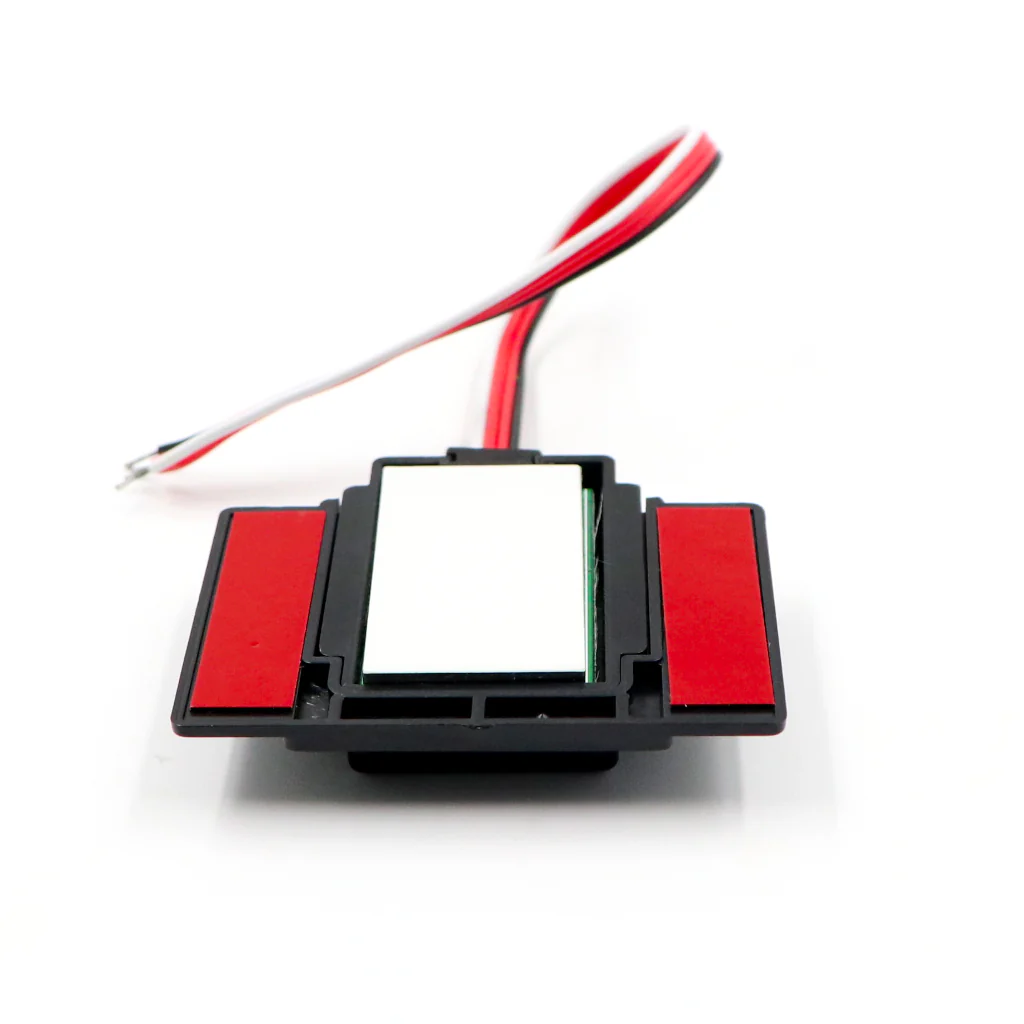

WS08CB-S2-BW WS 08 Single Touch Sensor Mirror Switch For Glass Lamp Mirror Light LED 12VDC 4.5A One Colour
WS08CB-S2-BW WS 08 Single Touch Sensor Mirror Switch For Glass Lamp Mirror Light LED 12VDC 4.5A One Colour

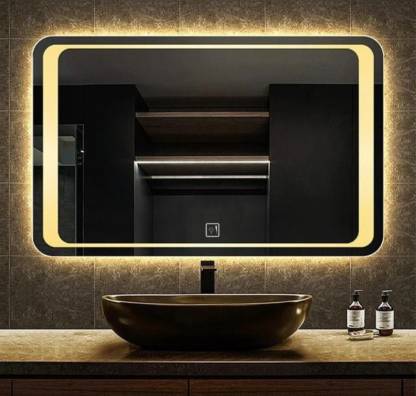

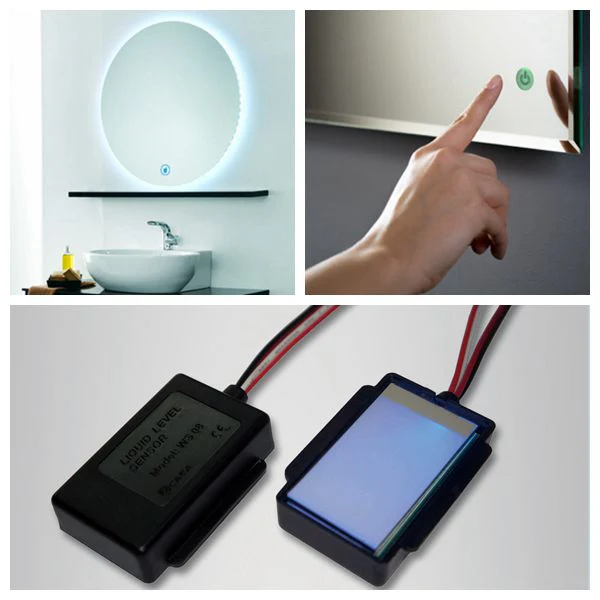

This is a dimmable mirror-touch dimmer switch for the hotel bathroom, smart touch switch, mirror light touch sensor switch. This switch has two 12V outputs which can be used for LEDs. On pressing/touching the bottom swithc it will turn on/off the light.
Switches Installation Procedure:
1. On the mercury side of the mirror, sand beating, or use the laser to carve out the icon of the switch button.

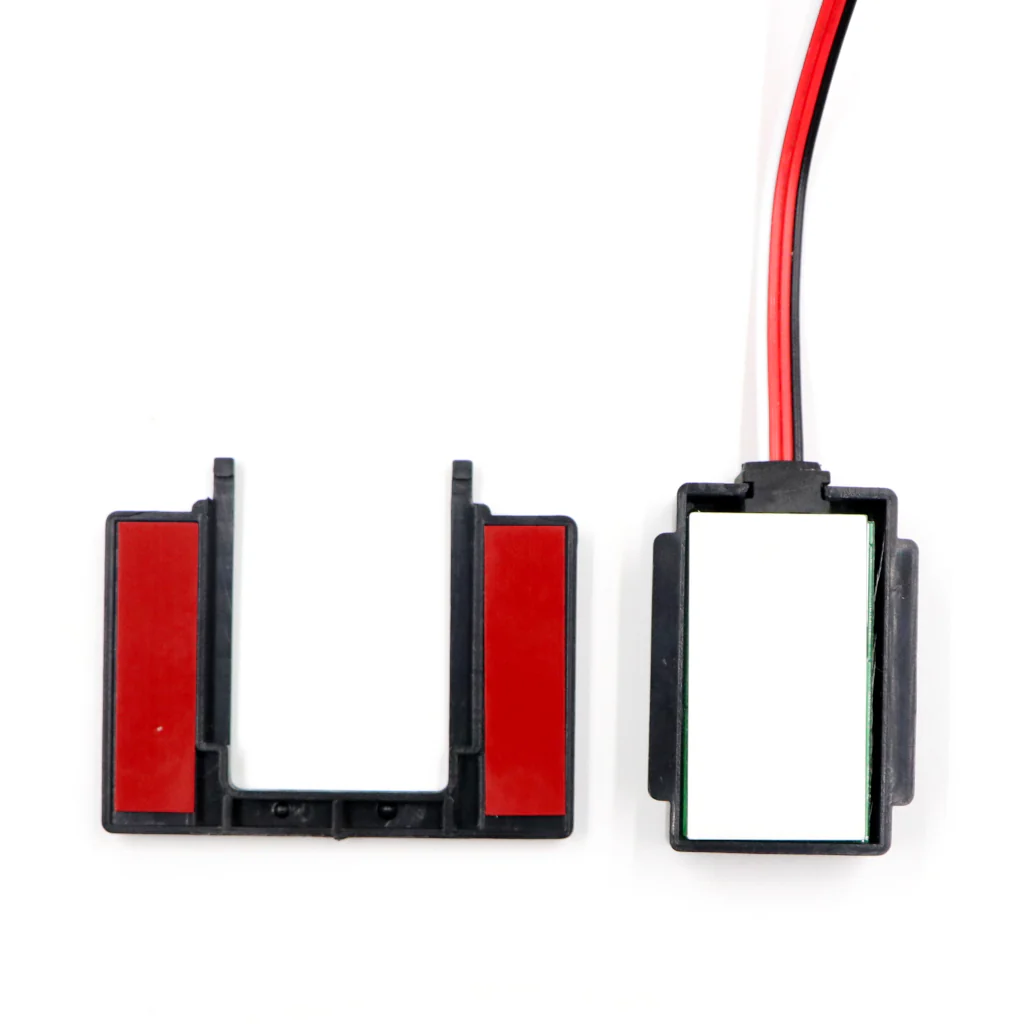

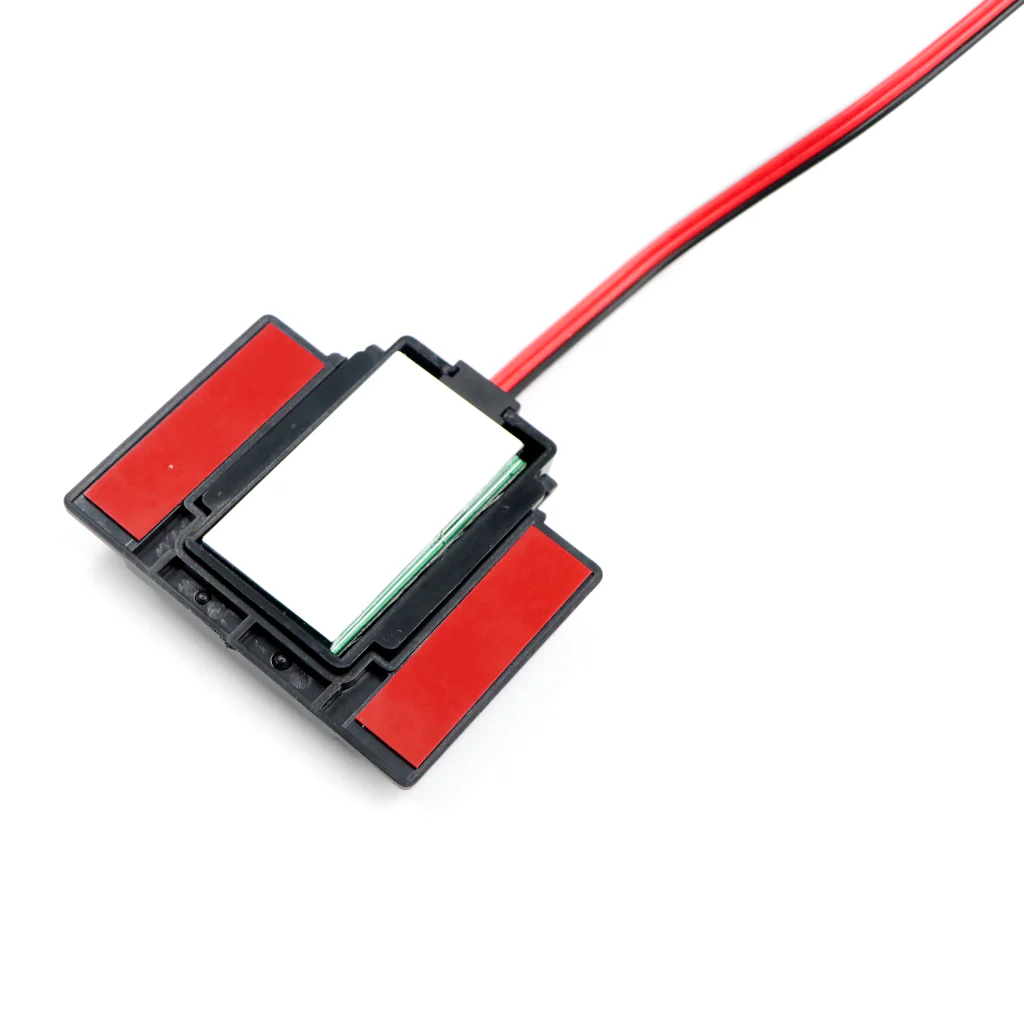

2. Remove the 3M sticker on the back of the bracket to facilitate the next step of pasting fixing installation.
3. Take the icon of the switch button as the centre, and stick the touch switch to the icon of the button.

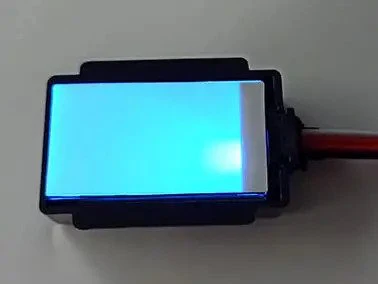

4. After installation, touch the switch to power on, and the mirror can see the backlight icon.
Specifications
| Operating Voltage | 12V DC |
| Operating Current | 0-4.5A |

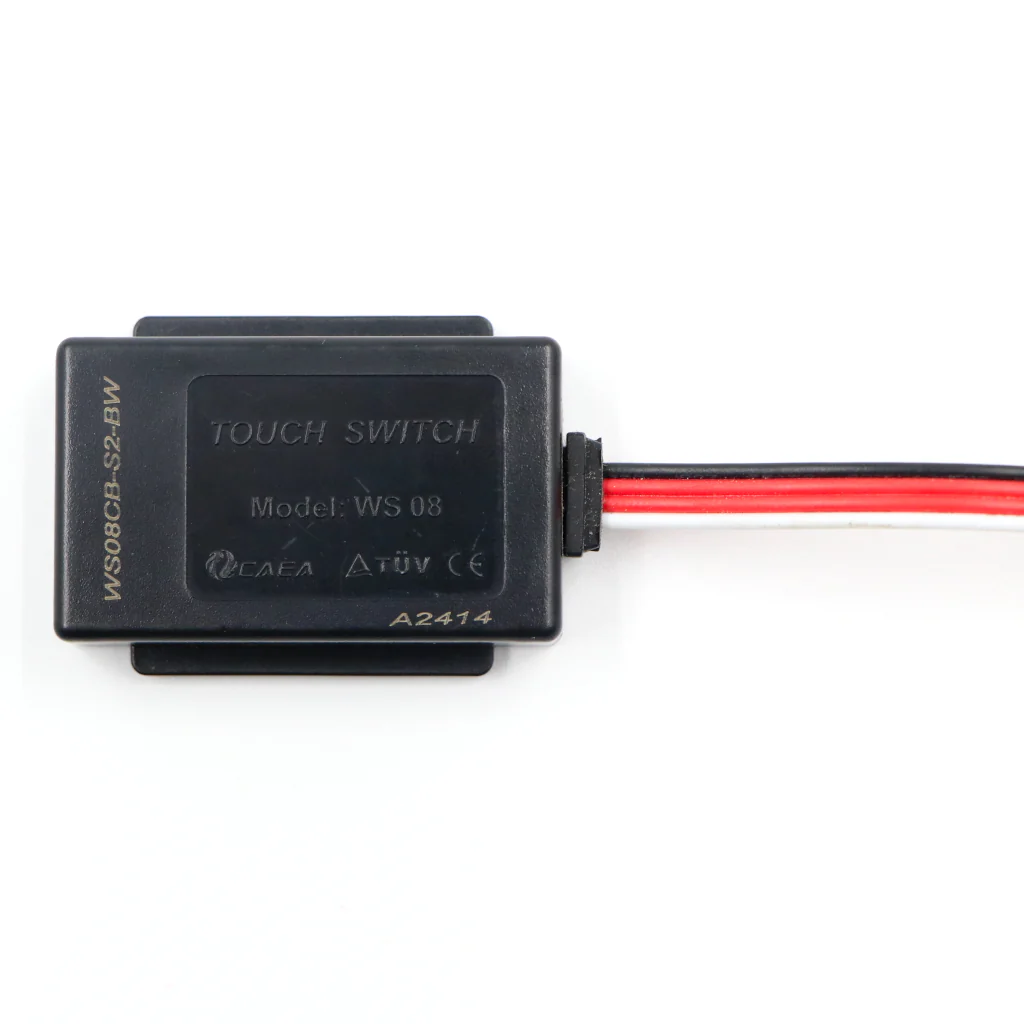

| Model | WS 08 |
| Dimming Function | Yes |

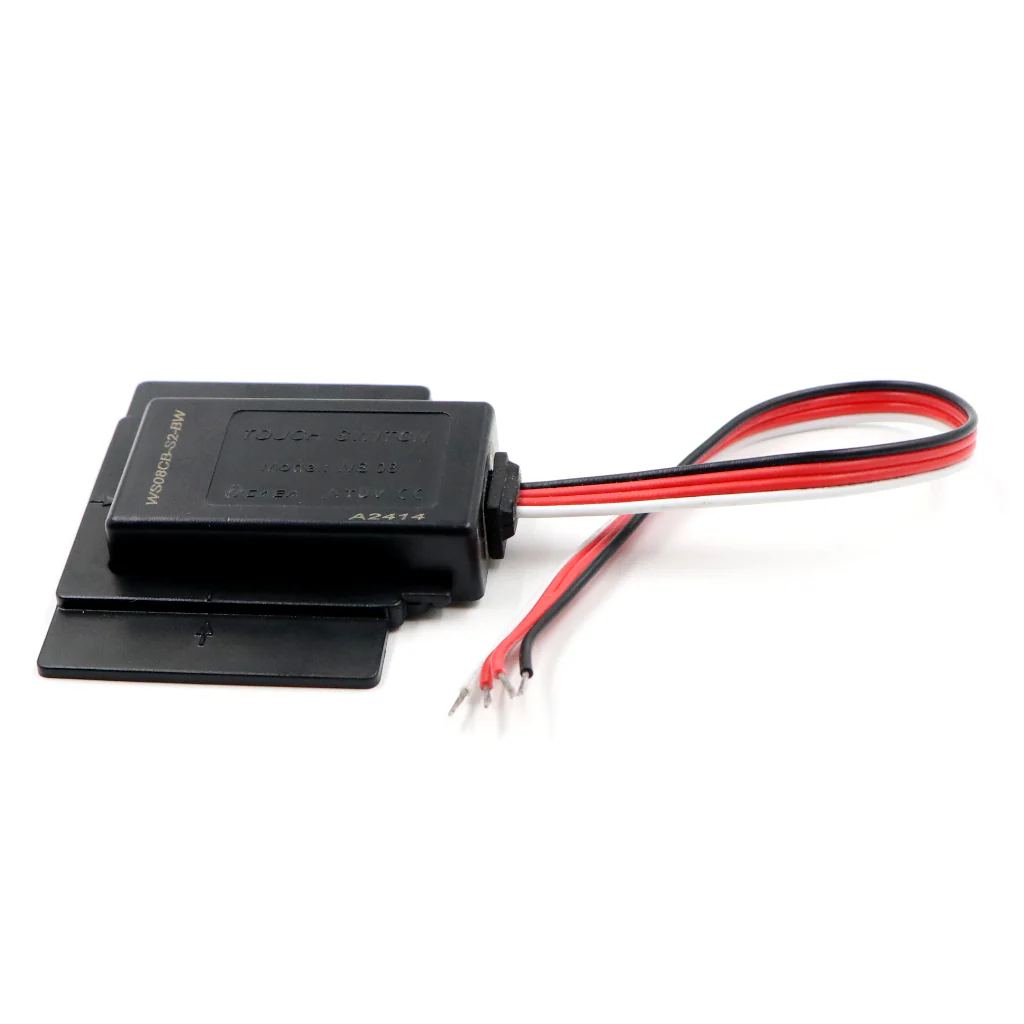

| Number of Wires | 4 |

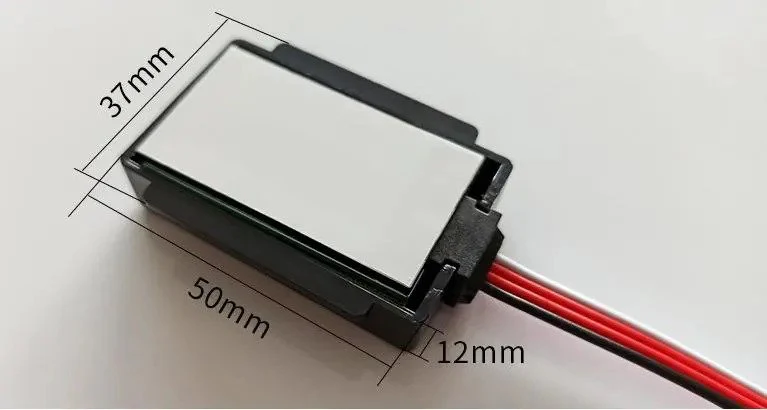

| Dimension(LxWxH) | 55mm x 35mm x 12mm |
| Cover Dimension(LxW) | 55mm x 63mm |
More Images
WS08CB-S2-BW WS 08 Single Touch Sensor Mirror Switch For Glass Lamp Mirror Light LED 12VDC 4.5A One Colour
This is a dimmable mirror-touch dimmer switch for the hotel bathroom, smart touch switch, mirror light touch sensor switch. This switch has two 12V outputs which can be used for LEDs. On pressing/touching the bottom swithc it will turn on/off the light.
Switches Installation Procedure:
1. On the mercury side of the mirror, sand beating, or use the laser to carve out the icon of the switch button.
2. Remove the 3M sticker on the back of the bracket to facilitate the next step of pasting fixing installation.
3. Take the icon of the switch button as the centre, and stick the touch switch to the icon of the button.
4. After installation, touch the switch to power on, and the mirror can see the backlight icon.
Specifications
| Operating Voltage | 12V DC |
| Operating Current | 0-4.5A |
| Model | WS 08 |
| Dimming Function | Yes |
| Number of Wires | 4 |
| Dimension(LxWxH) | 55mm x 35mm x 12mm |
| Cover Dimension(LxW) | 55mm x 63mm |
